General Lab Equipments

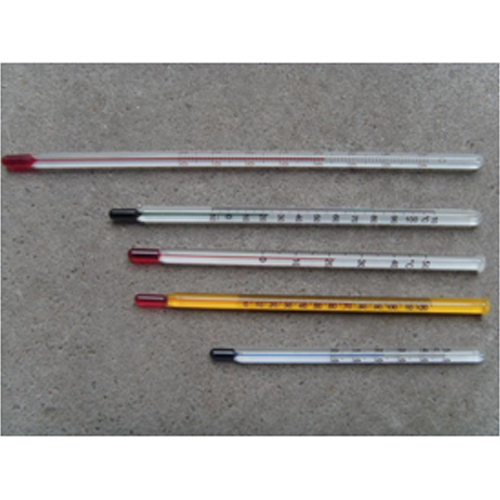

ASEW-283A - 50 deg. C.
ASEW-283B - 110 deg C
ASEW-283C - 250 deg. C
ASEW-283D - 300 deg C

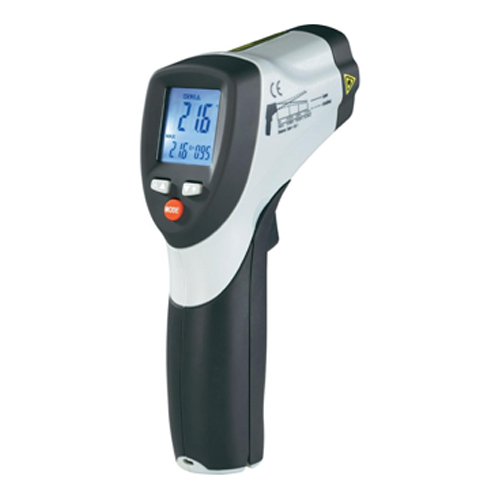

ASEW-283 E - Infrared Digital thermometer

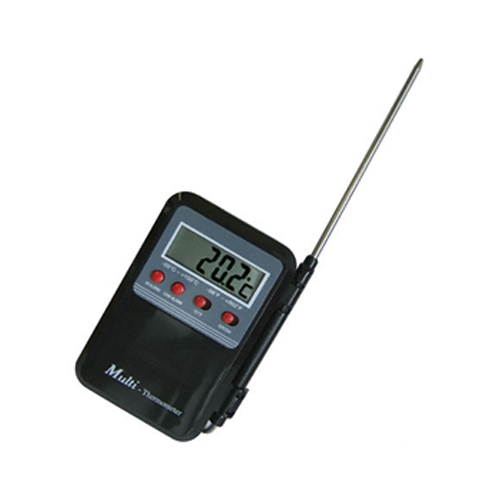

ASEW-283 F - Digital Thermometer with probe

FEATURES:
ONE HOUR AUTO SHUT OFF 133 MM. STAINLESS STEEL SENSOR PROBE WITH 1 METER WIRE PROTECTIVE PLASTIC CAP FOR STAINLESS STEEL WITH POCKET CLIP, STAND ON BACK UNIT AND SENSOR WIRE COMPARTMENT MAX/MIN (°F/°C) MEMORY RECALLING ALARM BEEP SOUND AT THE HIGH OR LOW TEMPERATURE LIMIT TEMPERATURE UNIT °F/°C SELECTABLE DATA HOLD/TEST FUNCTION SELECTABLE LOW BATTERY INDICATOR 1 SEC. NORMAL TEMPERATURE SENSING TIME

SPECIFICATION:
MEASUREMENT RANGE : -50°C to +300°C OR -58°F to +572°F RESOLUTION : 0.1° FOR -19.9° ~ +199.9°, OTHERWISE 1° ACCURACY : []±1°C IN THE RANGE OF -30°C ~ +250°C ,OTHERWISE MORE THAN ± 2°C []±1.8°F IN THE RANGE OF -22°F ~ +482°F, OTHERWISE MORE THAN ± 4°F AMBIENT TEMPERATURE FOR PLASTIC CASING: -10°C ~ +50°C OR +14°F ~ +122°F BATTERY :1 X 1.5V "AAA" SIZE OR EQUIVALENT

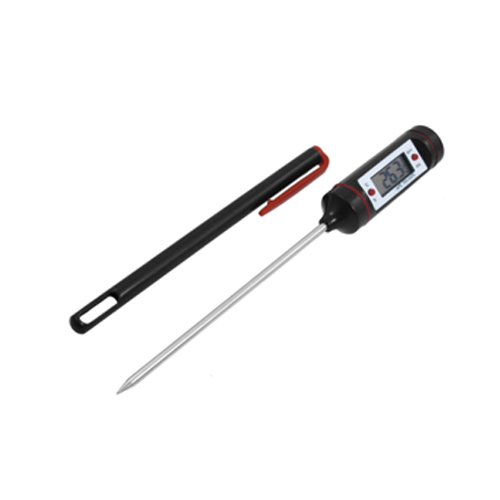

ASEW-283 G - Digital Pocket Thermomete
Digital Pocket Thermometer Digital Thermometer comes with in-build memory recalling. These products comes in protective plastic sleeves with clip for stainless steel sensor probe.

FEATURES:
APPLICATION: SOIL, CEMENT, FOOD PROCESSING, BABY SIT, REFRIGERATION, LABORATORIES, GREEN HOUSE

• 128MM. STAINLESS STEEL SENSOR PROBE
• MAX/MIN (°F/°C) MEMORY RECALLING
• TEMPERATURE UNIT °F/°C SELECTABLE
• DATA HOLD/TEST FUNCTION SELECTABLE
• 1 SEC. NORMAL TEMPERATURE SENSING TIME
• PROTECTIVE PLASTIC SLEEVE WITH CLIP FOR

STAINLESS STEEL

• LOW BATTERY INDICATOR
• AUTO POWER OFF: AFTER 45 MIN

SPECIFICATION:

• MEASUREMENT RANGE : -50°C ~ +300°C OR -58°F ~ +572°F
• RESOLUTION :0.1° ACCURACY: ±1°C IN THE RANGE OF -20°C ~ +120°C OTHERWISE ± 2°C (±4F)
• AMBIENT TEMPERATURE FOR PLASTIC CASING: -10°C ~ +50°C OR +14°F ~ +122°F
• BATTERY : 1 X 1.5V "G13/A76" SIZE OR EQUIVALENT
• BATTERY LIFE: 6000 HOURS

ASEW-283 H - Dial Thermometer for Asphalt 300 deg. C

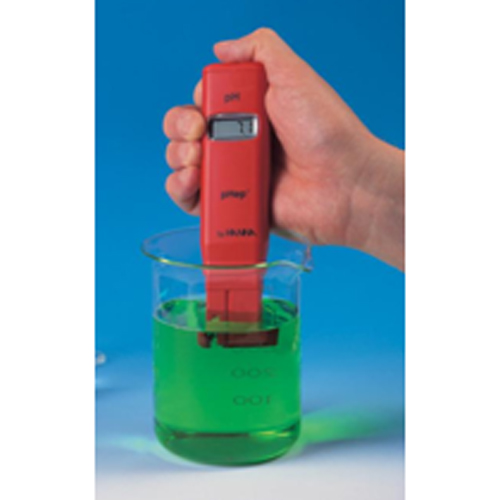

• pH Range: 0.00 to 14.00 pH
• pH Resolution: 0.1 pH
• pH Accuracy ±0.1 pH
• pH Calibration manual, two points
• Battery Type/Life 1.5V (4) / approximately 700 hours of continuous use
• Environment 0 to 50°C (32 to 122°F); RH max 95%
• Dimensions 175 x 41 x 23 mm (6.9 x 1.6 x 0.9'')

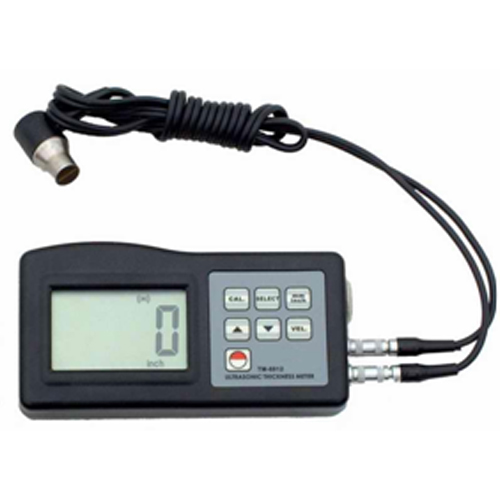

Measuring range (metric/imperial): 1.0-200mm,0.05-8inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer
Calibration block: included
Resolution: 0.1mm(TM8812C 0.01mm)
Accuracy: ±(0.5%n+0.1)
RS232C interface: with RS232C
Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Operating conditions: 0-+45C (32F -104F),?90%RH
Optional Accessories: 6M6mm thin Material probe: Measuring range(steel): 1.0 50.0mm Operating temperature: -10~+60C 5M12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300C

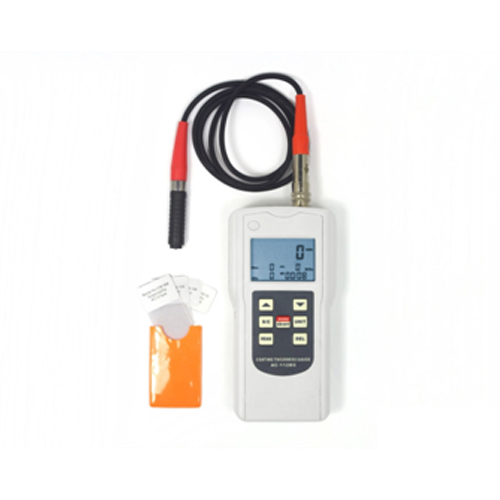

DIGITAL COATING THICKNESS GAUGE
ApplicationApplication: used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.

• With separate probe(s)
• With separate probe(s)

Operating principle: magnetic induction/eddy current (F/NF)
Measuring range: 0-1250um/0-50mil
Resolution: 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Display: 4 digit LCD display (10mm)
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions: 0-50(32-122),?80%RH
Accessories: Carrying case, F & NF probe, Iron Aluminum substrate, Operational Manual
Optional accessories: RS-232C cable & software:

• USB adaptor for RS-232C
• Bluetooth interface

Dimensions: 126x65x27mm
Weight: 200g(not including external probes)

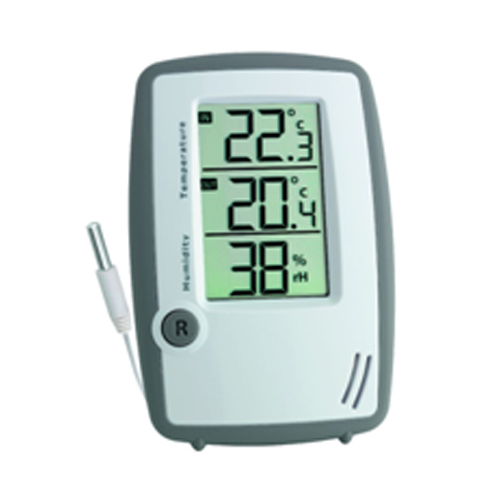

Humidity Meter Measures ambient temperature, relative humidity and tells time

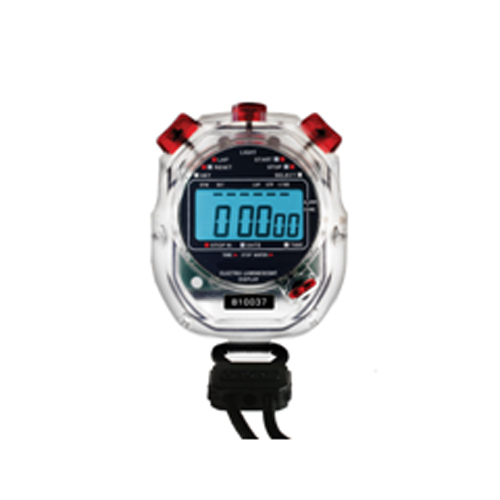

Stop Watch Digital 1/100th seconds stop watch, hours, minutes, seconds, normal time, date

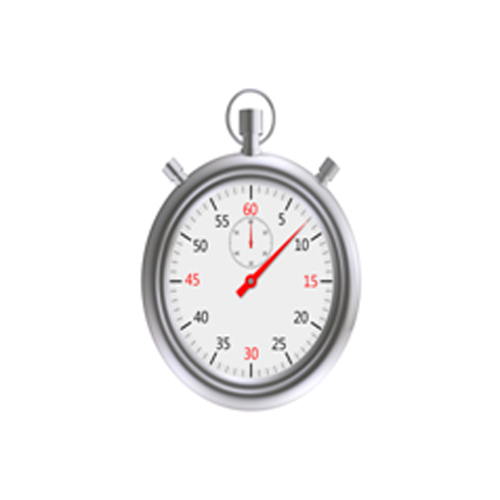

Stop Watch Mechanical. Nickel chromium case graduated 0-60 sec. x 0.2 seconds, calibrated to 30 minutes

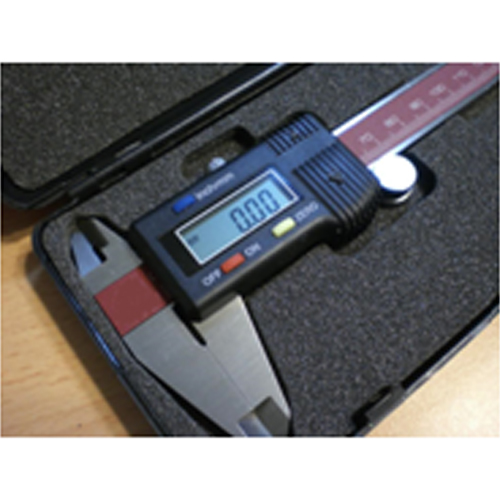

ASEW-291A - 150 mm
ASEW-291B - 200 mm
ASEW-291C - 250 mm
ASEW-291D - 300 mm

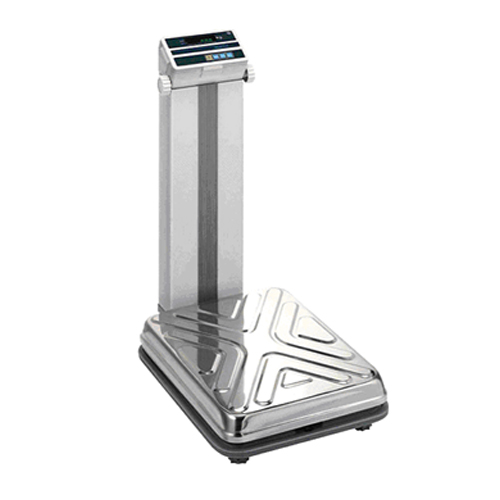

• Battery operated
• Large LCD Display
• Soft Touch Tack Switch
• Compact Design
• Tare & Hold Facility
• Double Display.
• AC Adaptor also.
• Stamping done by Weight & Measuring Deptt.
• Stainless Steel Platform.

ASEW-292A - 60 Kgs x 10 gm
ASEW-292B - 100 Kgs x 10 gm
ASEW-292C - 120 Kgs x 10 gm
ASEW-292 D - 200 Kgs x 20 gm
ASEW-292E - 300 Kgs x 20 gm
ASEW-292F - 500 Kgs x 100gm.

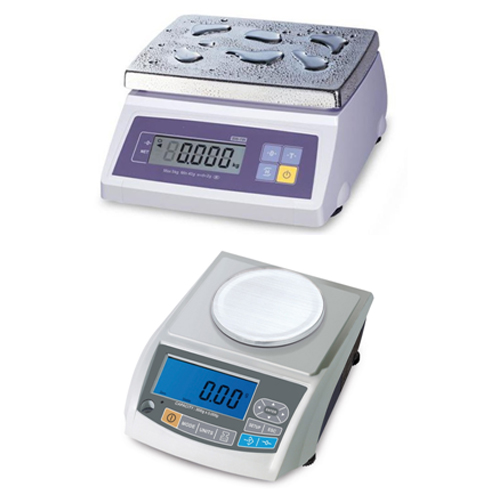

Electronic as well as Field Balances

• Battery operated
• Large LCD Display
• Soft Touch Tack Switch
• Compact Design
• Tare & Hold Facility
• Double Display.
• AC Adaptor also.
• Stamping done by Weight & Measuring Deptt.

ASEW-293A - 5 Kgs x 0.5 gm
ASEW-293B - 10 Kgs x 1 gm
ASEW-293C - 15 Kgs x 1 gm
ASEW-293D - 20 Kgs x 2 gm
ASEW-293E - 30 Kgs x 2 gm
ASEW-293F - 300 gm. X 0.01 gm
ASEW-293G - 600 gm. X 0.01 gm
ASEW-293H - 1 kg x 0.1 gm
ASEW-293I - 6 Kg x 0.1 gm

Other Models also available with different weighing capacities
