Soil Testing Equipments

Piston Sampler, Stationary type: Consists of : Sampling tube, 55 mm O.D. and 580 mm effective length., Piston ., Piston connecting rod, 1 meter long and One Drive head with adapter for 'A' type drill rods.

Designed for lab and field use to extract soil samples from 1.5",2",3", 4" and 6" compaction molds, as well as 2" tube samples. The ejection force is generated by means of a 5-ton (50 kN) capacity, hand-operated hydraulic jack. The steel ejector head assembly can be positioned at different heights through the use of quick release nuts . This enables the operator to easily match the ejection travel to the height of the mold being used. Allows direct transfer of soil from field sampling tubes with minimal disturbance, 170 mm piston stroke.

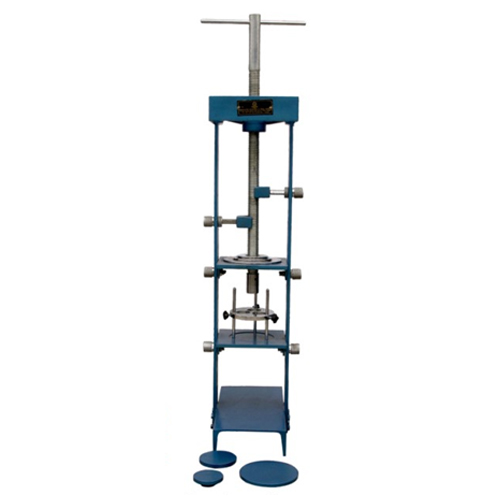

Consisting of a channel base, two slotted side supports, a bracket and a lead screw with locking collar and handle. Complete with adapter plate and plunger for 38 mm, 75 mm, 100mm and 150 mm dia tube or mould and one stand to obtain three 38 mm dia samples from the 100mm dia sample.

Riffle sample divider IS: 1607-1977; IS: 2720 (P-iv), ASTM C136, D421, D422, BS:812 (part103), 1377, AASHTO T27, T87.
ASEW , Riffle-type sample splitter can be used to divide or halve dry materials such as cement, gravel, powdered ores, aggregate, coal, coke, sand, soils, etc. Material poured into the hopper is divided into two equal portions by a series of chutes that discharge the material alternately in opposite directions into separate pans. Splitter is Mild steel construction it consists of a metal box fitted with a series of chutes of equal width which discharge the material alternatively in opposite directions into separate pans. The chutes of the riffle are steep enough to allow rapid flow of the material.

• Chute width - 13 mm,
• No. of chutes - 14

Complete with two pans and one scoop.

• Chute width - 25 mm, No. of chutes - 16

Complete with two pans and one scoop.

ASEW-085.1 - Riffle Sample Divider, Chute width 40 mm

• No of Cutes: 12.

Complete with two pans & a scoop.

• No. of Chute: 10

Complete with two pans & a scoop.

ASEW-086.1 - Riffle Sample Divider, Chute width 75 mm

• No. of Chute: 08

Complete with two pans & a scoop.

Vane shear apparatus, laboratory type, hand operated: IS 2720 (P-XXX), BS 1377.
Complete with set of springs, one each of approx. 2 kg. Cm. 4kg. Cm. 6 kg. cm and 8 kg. Cm & a container, in a nice teak wooden carrying case.

Vane shear apparatus, laboratory: motorized Similar to ASEW-087 hand, but electrically operated. Rate of rotation is 1/60 r.p.m. Suitable for operation on 230 V, Single phase, A.C. 50 cycles.

ASEW-088.1 - Accessories: Stand for use at the site.

In-Situ Vane Shear test apparatus IS: 4434 (Bore Hole type)

• Torque Applicator Assembly, Capacity 2000 kg-cm. Complete with stand
• Vane ( with Vane Rod), 37.5 mm dia x 75 mm high
• Vane (with Vane Rod), 50 mm dia x 100 mm high
• Torque Rod (square cross section) 60 cm long
• Rods (quick coupling type) 1 mm long
• Rods (quick coupling type) 0.5 mm long
• Dummy Rod
• Vane (with Vane Rod), 65 mm dia x 130 mm high
• Vane (with Vane Rod), 75 mm dia x 150 mm high
• Vane (with Vane Rod), 100 mm dia x 200 mm high
• Guide, with ball bearing arrangement, for alignment of the string of rods, for use with 10 cm casing pipe
• Guide, with ball bearing arrangement, for alignment of the string of rods, for use with 15 cm casing pipe

Note: Drilling equipment, including casing for borehole and jacking arrangement which are required for performing the test, do not form part of the above outfit.
