Concrete Testing Equipments

Our company offers Compression Testing Machines (Concrete), which is hand operated and has a capacity of 250 KN (25 tonne). This is designed so that it efficiently meets the need to test concrete cube for its compressive strength. This equipment is the most simple, economical and reliable means of testing.

Compression Testing Machines IS:516, BS 1881-115
ASEW-091

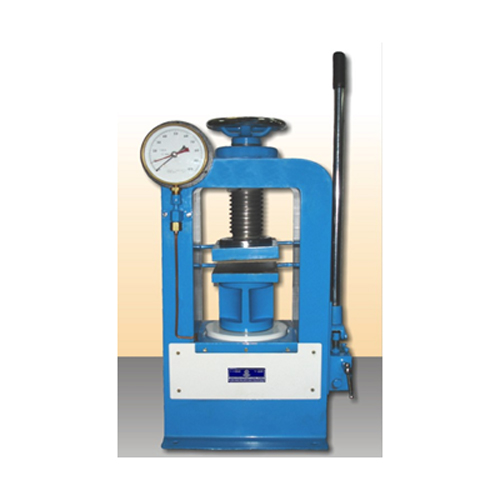

• Compression Testing Machine, hand operated, 250 KN (25 tonne),
• Channel Model : double plunger pump with hydraulic Load gauge.

ASEW-092

• Compression Testing Machine, hand operated, 500 KN (50 tonne),
• Channel Model : double plunger with hydraulic pressure gauge of0-500 KN capacity.

ASEW-093

• Compression Testing Machine, hand operated 1000 KN( 100 tonne),
• Channel Model: fitted with double plunger pump with hydraulic Load gauge 0-1000 KN capacity.

ASEW-094

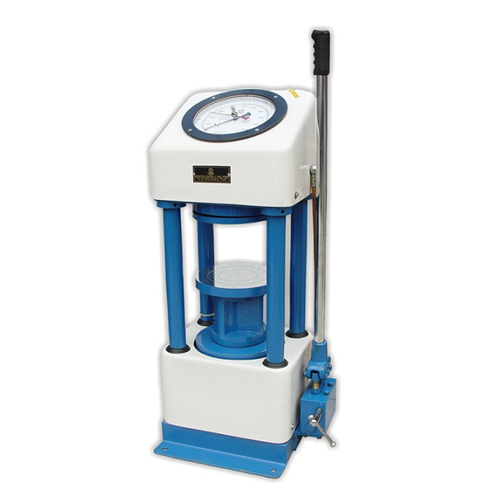

• Compression Testing Machine, hand operated, 1000 KN (100 tonne), 4- Pillar Model, fitted with double plunger pump and hydraulic Load gauge 0-1000 KN of 200 mm dia. Portable Model. Top and bottom Fiber cover.

We are engaged in manufacturing and supplying Concrete Compression Testing Machines, which is available in both manual and electrically types. The machine is fitted with control which enables the rate of application of load to be varied. The machine is equipped with facilities for hand operation as well.

ASEW-095

• Compression Testing Machine, hand operated, 2000 Kn (200 tonne),
• Channel Model: Fitted with double plunger pump and hydraulic Load gauge 0-2000 KN cap

ASEW-096

• Compression Testing Machine, hand operated, 2000 KN (200 tonne), 2 or 4 Pillar model, with separate pumping unit connected by a copper/rubber hose pipe, double plunger with pressure gauge 0-2000 KN capacity.

ASEW-097

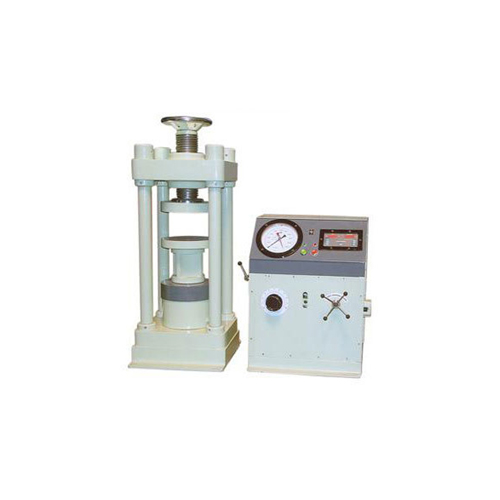

• Compression Testing Machine, 250 KN (25 tonne) Electrically-cum-manually operated. TWO/FOUR PILLAR MODEL. "
• Compression Testing Machine, 500 KN (50 tonne) Electrically-cum-manually operated.

ASEW-099

• Compression Testing Machine, 1000 KN (100 tonne) cap.,
• Electrically-cum-manually operated. 2 or 4 PILLAR MODEL.

ASEW-100

• Compression Testing Machine, 1000 KN (100 Tonne)cap.
• Electrically-cum manually operated. 2 or 4 PILLAR MODEL : with two pressure gauges i.e. 0-500 KN x 2.5 KN divn. and 0-1000 KN x 5 KN/ divn.

ASEW-101

• Compression Testing Machine, 2000 KN (200 Tonne) cap.
• Electrically-cum-manually operated. 2 or 4 pillar model.

ASEW-102

• Compression Testing Machine, 2000 KN. (200 tonne) cap.
• Electrically-cum-manually operated with two
• Load gauges 2 or 4 Pillar Model. 0-1000 KN x 5 KN/divn. and 0-200KN x 10 KN/divn.

ASEW-103

• Compression Testing Machine, 2000 KN (200 tonne) cap.
• Electrically-cum-manually operate with 3gauges. 2 or 4 Pillar MODEL. 0-500 KN x 2.5 KN, 0-1000 KN x 5 KN/div. and 0-2000 KN x 10 KN/divn.

ASEW-104

• Compression testing Machine. Digital 2000 KN x 1 KN least count.
• ASEW series Compression Testing machine are the finest of there type obtainable. The rugged construction & extreme simplicity make it possible for even non-technical personnel to operate them with ease and complete dependability. ASEW Compression Testing Machine conform to the requirements international Standards like BS ASTM & Indian Standard IS:516.
• Some Salient Features:
• High Stability,
• Self Aligning,
• Platen Suitable for Testing Cubes and Cylinders of various sizes,
• Brick can also be tested,
• Digital having function of peak hold facility, memory status,
• automatic cut­off of maximum Load, Alarm generated when the sample breaks down,
• Cubes of size 50 mm - 200 mm can be tested, Cylinders 100 mm x 200 mm ht.& 150 mm dia. x 300 mm ht. can be tested.
• NOTE: You can get Digital Readouts in all Machines cap. 250 KN to 3000 KN.

We are engaged in offering Compression & Flexure Testing Machine, which is specially designed for compression test of concrete. It has high precision servo control and simple-operated program improve effectively the convenience and reliability of test.

ASEW-105

• Compression Testing Machine. Digital 2000 KN x 1 KN least count fitted with additional pressure gauge 2000 KN x 10 KN/Div.

ASEW-106

• Power pack for standard portable model

ASEW-107

• Compression Testing Machine, (3000 KN) cap., electrically-cum-manually operated. 2 or 4 PILLAR MODEL.

ASEW-108

• Compression Testing Machine, 3000 KN. (300 tonne) cap.
• electrically-cum-manually operated. 2 or 4 PILLAR MODEL: with three Load gauge 0-1000 KN x 5 KN/div, 0-2000 kN x 10 kN/div and 0-3000 KN x 15 KN/divn.

ASEW-109

• Compression testing machine, 3000KN cap x 1 KN Electrically with Digital Display. 440V, 3 Phase, 50 cycles, AC supply.
• Accessories:
• Brick Platen. Set of 2
• Load Gauge 150 mm dia. for Manually CTM
• Load Gauge 200 mm dia for electrical CTM
• Flexural attachment for 100 x 100 x 500 mm Beams and 150 x 150 x 700 mm beam as per IS: 516
• Dummy with Red needle for Load gauge.
• Spacer Block for 1000 KN Machine
• Spacer Block for 2000 KN Machine
• Hydraulic Pump 100 tonne for Portable CTM hand
• Hydraulic Pump for 100 tonne machine hand operated
• Hydraulic Pump fort 200 tonne machine hand operated

Flexure Strength
ASEW-110

• Flexural testing machine upto 100 KN capacity hand operated For 10 x 10 x 50 and 15 x 15 x 70 cms concrete beams as per IS-516-1959, IS: 4696.
• Complete with Hydraulic Load gauge 0-100 KN x 0.5 kN/div. With Calibration certificate. Hand operated Loading unit 100 KN cap. with a self retracting type jack & a hand operated hydraulic Pump, Load gauge with maximum load indicating pointer,
• The machine has a set of platens, top platen has a self aligning roller fixed at the center and lower one has two rollers of 25 mm dia, equally spaced at a distant of 15 cm.
• These rollers are hard chrome plated to increase the abrasion resistance and hardness. Type of Loading: Third point.

ASEW-111

• Flexural testing machine, same as ASEW-110, but electrically-cum-Manually operated. 220V, 1 Phase, 50 cycles, AC supp

We offer Cube Moulds with base plates which are available in different sizes as per the clients’ specific requirements. The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many international standards.

Preparation Mouldingand Curing Test procedures require that specimens are cast in a number of standard sizes convenient for compressive and flextural strength determination.

The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many international standards. Moulds not deform during manufacture of concrete specimens if the specimen dimension are to be maintained. IS: 100086 .BS 1881-108
ASEW-112

• Cube Mould 5cm x 5cm with base plate, made of Cast iron/M.Steel.

ASEW-113

• Cube Mould, 7.06cm x 7.06cm with base plate. Made of cast iron.

ASEW-114

• Cube Mould. 7.06cm x 7.06cm with base plate. Made of M. Steel.

ASEW-115

• Cube Mould. 10 cm x 10 cm with base plate. Made of Cast iron.

ASEW-116

• Cube Mould. 15cmx 15 cm with base plate. Made of Cast iron

ASEW-117

• Cuhe Mould, 20cm x 20 cm with base plate. Made of Cast iron

ASEW-118

• Cube Mould, 30cm x 30cm with base plate. Made of Cast iron

ASEW-119

• Beam Mould. 10 x 10 x 50 cms with base plate. Made of M. steel.

ASEW-120

• Beam Mould.15x15x70 cms with base plate. Made of M. steel.

ASEW-121

• Beam Mould 15x15x75 cm with base plate. Made of M. steel.

ASEW-122

• Cylinderical Mould. 10cm x 20 cm with base plate. Made of Cast iron.

ASEW-123

• Cylinderical Mould. 15Cm x 30cms ht with base plate. Made of Cast iron

ASEW-124

• Briquette mould, made of gunmetal with M. steel base plate. IS: 269
• Single Gang with base plate.
• Three Gang on a single base plate.

Cylindrical Specimen Capping Equipment
ASEW-125

• Capping set. Horizontal for 10 cms dia x 20 cms high specimen.

ASEW-126

• Capping set, Horizontal for 15 cm dia x 30 cms high specimen.

ASEW-127

• Capping set. Vertical for 10 cm dia x 20 cms high specimen.

ASEW-128

• Capping set, vertical for 15 cm dia x 30 cm high specimen.

Our company is engaged in manufacturing and supplying a wide range of Concrete Test Hammers, which is an instrument easy to use, for quick and approximate measurement of the resistance to pressure of manufactured concrete products. It works on the principle that the rebound of an elastic mass impacting on a surface is a function of the hardness of the surface itself. Hence the harder the surface, the greater is the rebound distance.

ASEW-129

• Concrete Test Hammer BS 1881 -202,ASTM C805
• The Method is based on the principal that the rebound of an elastic mass depends on the hardness of the surface which it strikes. The Test is fast & unlikely to cause damage to the concrete.
• The hammer is intended for testing the quality of concrete in finished structures such as buildings and bridges. Supplied complete with carrying case and carborundum stone, the hammer is suitable for testing concrete with Compressive Strengths of 10 to 70 N/mm2. Weight 1.4 Kgs. App.

We are engaged in offering Vibration Compaction Tools, which prevent moulds from walking off the table during vibration. The variably pitch pulley arrangement permits the frequency to be varied sleeplessly between a maximum of 3600 vibrations down to 2600 vibration per minute.

ASEW-130

• Vibrating Table for compaction concrete cube, cylinders.
• The Table Deck size 50cm x 50 cm and has stops along its edges to prevent Moulds from walking off the table during vibration.
• The variably pitch pulley arrangement permits the frequency to be varied sleeplessly between a maximum of 3600 vibrations down to 2600 vibration per minute.
• A speed regulation handle is provided for increasing or decreasing the frequency.
• The vibrator is mounted on a cushioned steel vibrating deck.
• A switch is provided for starting the motor operation on 440 V, 3 phase, A.C. supply. CABINET TYPE.
• Vibrating Table, Table top 60 cm x 60 cms Vibrating Table, Table top 75 cms x 75 cms Vibrating Table top,. 1 meter x 1 meter

ASEW-131

• Vibrating Hammer
• It is Suitable for Compacting Asphalt/ Concrete Samples.
• The Vibrating Hammer is a useful and convenient Hammer for compacting concrete specimens in cube moulds of different sizes.
• Electrically operated.
• Operation son 220V, 1 phase, 50 cycles, AC supply.
• Complete with Tamping foot 75 mm x 50 mm and tamping foot 140 mm x 100 mm.

Our range of Concrete Consistency Testers is mainly used to determine and measure how hard and consistent a given sample of concrete is before curing. These are suitable for operation on 230 volts, 50 cycles, A.C. supply.

Consistency Of Workability
ASEW-132

• Vee-Bee Consistometer : IS : 1199, BS: 1881 (P-104), ASTM C1170,AASHTO T 126 Consists of a vibrating table, specimen pot, slump cone, graduated Rod and plate. Suitable for operation on 230 volts, 50 cycles, A.C. Supply.

ASEW-133

• Slump Test apparatus: IS: 7320.BS 1881-102, BS 5075,ASTM C143,AASHTO Tl 19 Consists of slump cone fitted with handles and foot pieces in position. Base plate in octagonal shape, Two clamps slide over the foot grips of a standard slump cone and hold It securely while filling and rodding. A combination swivel carrying handle. Complete with graduated tamping rod 0-60 cms long and 16 cms long and 16 mm dia with 0-30 cms
• Accessories:
• Slump cone 10 cms top dia, 20 cms bottom dia and 30 cm height
• Tamping rod, graduated 0-60 cms long x 16 mm dia with scale Graduation.
